Dual Camera Borescope with (Straight and side view camera together)

Features:

Diameter of Camera Head 9mm / 6mm
Camera Resolution 300,000 pixels
Field of Viewing angle 90°
Camera Depth of Field Front – 10mm-100mm
Side – 3mm-100mm
Camera Lighting Front – 4 white LED
Side – 2 white LED
Probe Length 1 meter (Optional 3 meter)
Probe Material Semi Flexible

DOWNLOAD BROCHURE

ENQUIRE NOW

SKU:SC0025

DUAL CAMERA BORESCOPE SYSTEM

New Dual Camera Borescope system has two separate cameras in probe (0° & 90°side view) to inner part precisely & clearly. The Probe size is 9mm and has two built in cameras which enables the viewer to view the inside part by both the sides clearly.

Technical Specifications of Monitor:

Display 3.5” TFT LCD Monitor
Photo JPEG (1600×1200)
Video AVI (640×1200)
Function Image ZOOM\ Rotation & Mirror\ Freeze Frame
Language English
Storage Micro SD Card (Maximum up to 32GB)
USB USB 2.0 Micro USB
TV Out PAL
Power Li-ion Battery (2600mAh) Battery Life 5 Hours

CONTACT US

For any queries

Send us a message or contact us on the given numbers to know more about the products and their prices, their delivery schedule and production cap

    Item Code

    SC0025
    Pay Mode Terms

    Bank Transfer, UPI Payment
    Port of Dispatch

    Mumbai
    Production Capacity

    100
    Delivery Time

    3-5 days
    Packaging Details

    Laminated Box with styrofoam packing inside

      Bestsellers

      Hot
      Quick view

      ENQUIRE NOW

      9mm Video Borescope 3 meter

      The 9mm Straight View Video Borescope is a versatile tool for non-destructive inspection. This compact and handy device equips for instant image display. Features:
      • Low maintenance
      • Reasonable Price
      • Adjustable brightness
      • 1 meters length
      • 2.4 ' screen
      • 9mm diameter
      DOWNLOAD BROCHURE
      Quick view

      ENQUIRE NOW

      9mm Video Borescope 5 meter

      The 9mm Straight View Video Borescope is a versatile tool for non-destructive inspection. This compact and handy device equips for instant image display. Features:
      • Low maintenance
      • Reasonable Price
      • Adjustable brightness
      • 5 meters length
      • 2.4 ' screen
      • 9mm diameter
      DOWNLOAD BROCHURE
      Hot
      Quick view

      ENQUIRE NOW

      Dual Camera Borescope with (Straight and side view camera together)

      Features: Diameter of Camera Head 9mm / 6mm Camera Resolution 300,000 pixels Field of Viewing angle 90° Camera Depth of Field Front – 10mm-100mm Side – 3mm-100mm Camera Lighting Front – 4 white LED Side – 2 white LED Probe Length 1 meter (Optional 3 meter) Probe Material Semi Flexible DOWNLOAD BROCHURE
      Quick view

      ENQUIRE NOW

      Long Borescope 5.5 mm 20 meter length

      Video Borescope Extend camera cable Specification  Features:
      • Image Sensor VGA CMOS Sensor, Sensor area 1 /12′
      • Effective Pixel: 720(H)x625(V)(P)/720(H)x525(V)(N) 0.45Mega (Φ5.5mm); 640X480 (Φ9.0mm);
      • Focus distance : 20mm-70mm
      • View angle: 64-degree Fov (D)
      • Length: 1 meter to 20 meters
      • Probe diameter: Φ5.5 mm
      • Cover material: Fiber + PVC cover
      • LED lamps: 4 LED lamps
      • Connector: Pin Connector
      • Function: video borescope extension( special for pipeline inspection )
      • Features: More flexible than normal boroscope cable, easier storage.
      • Optional Accessories: 1XStorage reel,1X Reflex Mirror,1X PE tool case, 1X transition cable
      DOWNLOAD BROCHURE
      Hot
      Quick view

      ENQUIRE NOW

      Long Borescope 9.0 mm 20 meter length

      Item: Long 20 meter Borescope Part Name: Video Borescope Extend camera cable Specification Features:
      • Image Sensor VGA CMOS Sensor, Sensor area 1 /12′
      • Effective Pixel: 720(H)x625(V)(P)/720(H)x525(V)(N) 0.45Mega (Φ5.5mm); 640X480 (Φ9.0mm);
      • Focus distance : 20mm-70mm
      • View angle: 64-degree Fov (D)
      • Length: 1 meter to 20 meters
      • Probe diameter: Φ9.0mm
      • Cover material: Fiber + PVC cover
      • LED lamps: 4 LED lamps
      • Connector: Pin Connector
      • Function: video borescope extension( special for pipeline inspection )
      • Features: More flexible than normal boroscope cable, easier storage.
      • Optional Accessories: 1XStorage reel,1X Reflex Mirror,1X PE tool case, 1X transition cable
      DOWNLOAD BROCHURE
      Quick view

      ENQUIRE NOW

      3.9mm Video Borescope 1 meter

      We are amongst the prominent names in the industry engaged in manufacturing and supplying quality tested the range of Video Borescope. The offered product range is widely acknowledged for its optimum quality and high-resolution capacity. Our entire product range is widely acknowledged among the clients for seamless performance and durable nature. We have small borescopes for all type of requirements. Our lowest possible diameter is 4.9mm up to 10 mm We have some borescopes with Video out and some borescopes with USB out. We also have the metal flexible wire of long distance to connect to borescope camera. A client can have a lot of choices while selecting appropriate Borescope. Features:
      • Low maintenance
      • Reasonable Price
      • Adjustable brightness
      • 1 meters length
      • 2.4 ' screen
      • 9mm diameter
          DOWNLOAD BROCHURE
          Quick view

          ENQUIRE NOW

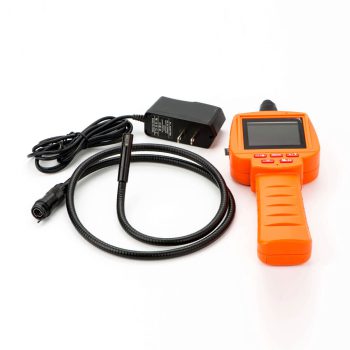

          3.9mm Video Borescope 3 meter
